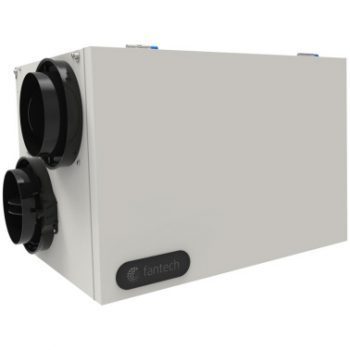

Fantech SHR 200 Fresh Air Appliance (HRV System)

$779.95

The Fantech SHR 200 is a Heat Recovery Ventilator (HRV) which is a complete whole house ventilation system that incorporates a supply motor and an exhaust motor in one unit. It is designed to bring a continuous supply of fresh air into the home while exhausting an equal amount of contaminated air. Fantech’s HRVs use what is known as a “sensible” heat recovery core. The special aluminum core transfers heat from the exhaust air stream to the incoming air stream. Fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs. HRVs are designed for colder areas of the country that have longer heating seasons as well as drier areas in the south.



Description


  • Airflow up to 195 cfm @ 0.4″ PS serves 2 to 5 bedroom homes
  • Side port connections
  • Compatible with Fantech’s low-voltage controls

Application

Fantech’s SHR 200 side port connection HRV for budget conscious house projects. The SHR 200 is ideal for projects that demand a higher efficiency, the unit is designed for higher static pressure applications. The Fantech SHR 200 is designed to ventilate homes up to 5000 square feet. If you are in need of clean / fresh air at an affordable price then the Fantech SHR 200 HRV system is the perfect addition to your home or business.

How it works

The Fantech SHR 200 is an HRV system that brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the incoming air is pre-cooled if the house is equipped with an air cooling system. The SHR 200 is equipped with automatic defrost mechanisms so you can use your HRV all year long.

Defrost cycle

A preset defrost sequence is activated at an outdoor air temperature of 23°F (-5°C) and lower. During the defrost sequence, the supply blower on the Fantech SHR 200 HRV system shuts down & the exhaust blower switches into high speed to maximize the effectiveness of the defrost strategy. The unit then returns to normal operation, and continues cycle.

Additional information

Weight 61 lbs
Dimensions 42.00 x 28.00 x 38.00 in
